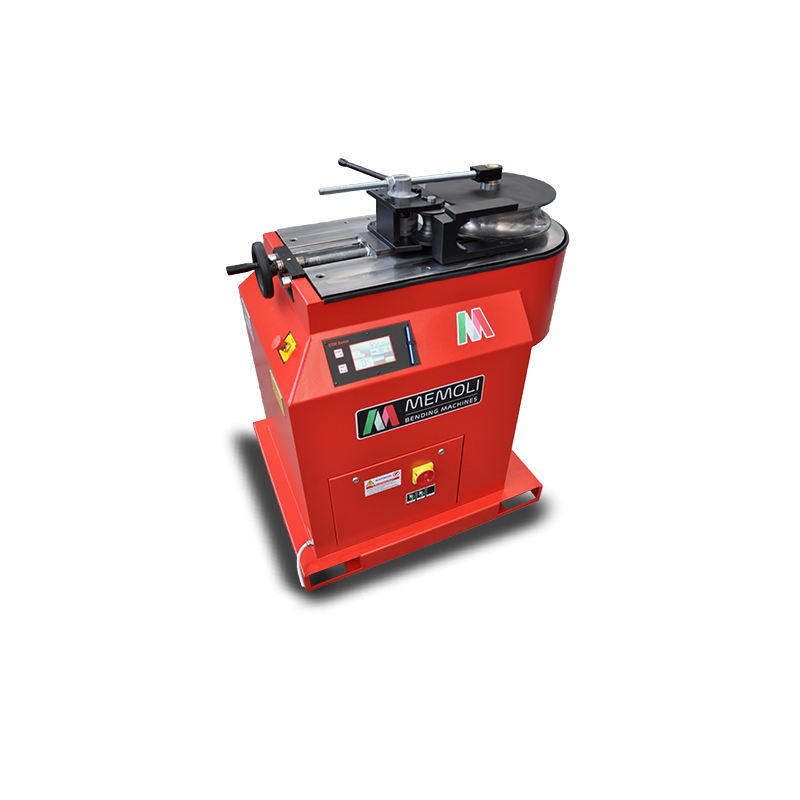

Electric bending press ETM 80

New ETM 80 rotary draw bending machine, a powerful and precise no mandrel tube bending machine designed for all types of tubes and profiles.

A solid, high-performance machine, entirely “Made in Italy”, capable of bending large diameter tubes on both the right and left sides.

The ETM 80 allows to bend tubes with a range diameter up to 76 x 6 mm, and can bend more than 180° with maximum finishing quality.

The machine is manufactured from a single piece of steel, with dies made from solid C45 steel.

The specially designed counter-dies system allows less mechanical effort and much faster machining than machines in the same category, guaranteeing excellent finishes even with the thinnest thicknesses.

Extremely easy and quick to use thanks to the “Digital Bend Programming Touch Screen 2”, software specially created for our machines, which can select as many as 49 programs with 8 bending angles each and with automatic correction of springback. It also allows you to save your projects as repeatable programs.

The ETM 80 can be equipped with a manual rotary positioning table. This table is available in various lengths for repeatable bends in a single piece of material. When the table is attached to the bender, it helps achieve very accurate bends on varying planes, as well as consistent measurements between bends.

Reliable and well-performing machine, it is perfect for various activities and fields like hydraulic, nautical and general plant construction engineering.

Motor power KW 2,2
Rotation speed * 3,5 g/1’ *
Gears Oil-bath
Wieght 560 kg
Size 1100 x 810 x 1200 h.

Maximum capacity (mm)

FE 430 76 x 6
Aluminium 76 x 8
INOX AISI 304 76 x 4
Solid Bar FE 430 55
Square Tube FE 60 x 4
