Salvagnini P4 - 2226
The P4 panel bender natively combines productivity, with its automatic bending and handling cycles, and flexibility, with its universal bending tools.

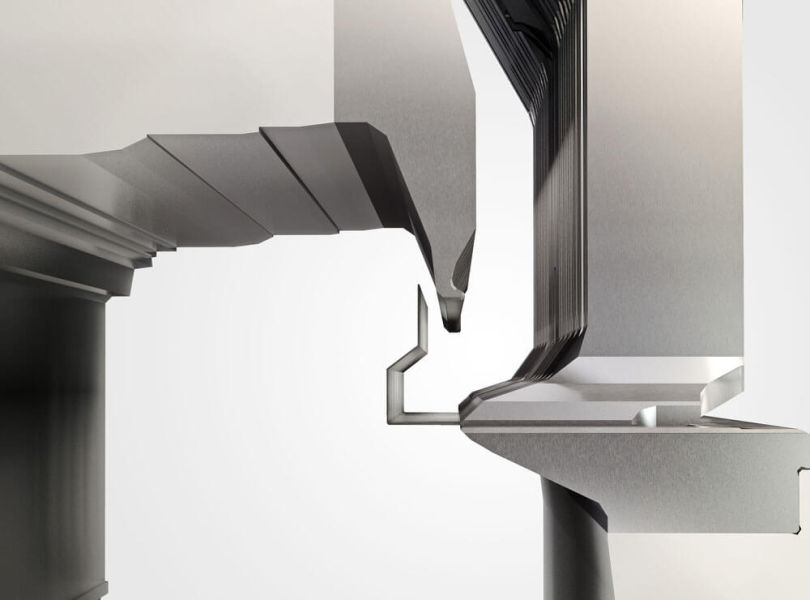

It uses universal bending tools which automatically adapt in-cycle to the panel geometry, without machine down times or manual re-tooling, allowing batch-one or kit productions.
Sustainable technology
The technical solutions adopted (Direct Drive and pneumatic and electric actuators) allow it to respect both people and the environment without reducing its productivity. It runs with a minimum quantity of long-life oil, inside a fully sealed circuit.
Adaptive system
The integrated adaptive technologies (advanced sensors, bending formula, MAC3.0) make the system intelligent and able to automatically adapt to changes in the material and the external environment, eliminating waste and corrections, and extending the range of products that can be made.
Connectivity 4.0
The proprietary LINKS and OPS software establish communication between the system and the company departments involved in the production flow.
| Maximum length of incoming sheet [mm] | 2815 |
| Maximum width of incoming sheet [mm] | 1524 |
| Maximum diagonal that can be rotated [mm] | 2820 |
| Maximum bending force [kN] | 590 |
| Maximum clamping force [kN] | 635 |
| Maximum bending length [mm] | 2200 |
| Maximum bending height [mm] | 254 |
| Minimum thickness [mm] | 0.5 |
| Maximum thickness and bending angle steel, UTS 410 N/mm2 [mm] | 3.2 (±90°) 2.5 (±130°) 2.1 (±135°) |
| Maximum thickness and bending angle stainless steel, UTS 660 N/mm2 [mm] | 2.5 (±90°) 2.1 (±125°) 1.6 (±135°) |
| Maximum thickness and bending angle aluminium, UTS 265 N/mm2 [mm] | 4.0 (±120°) 3.5 (±130°) 3.0 (±135°) |
Salvagnini S4 + P4 line - Flexible manufacturing system
The S4+P4 line is one of Salvagnini's most popular solutions. It punches, shears and bends sheet metal totally automatically. The first prototype dates back to 1979 and is a landmark in the development of systems for integrated logistics. It remains the most efficient flexible manufacturing system (FMS) on the market today.
Since the beginning the S4+P4 was and remains the most efficient flexible manufacturing system (FMS) on the market.
Automatic Punching & Bending Line
The example shown is the result of a project developed in partnership, specifically for a company that described its production and logistics requirements to us. We have provided a solution with great flexibility and multiple configurations.
Salvagnini ROBOformER
Salvagnini is the first company to adopt the concepts of lean manufacturing by developing automatic and totally flexible processing systems; and the first to introduce a totally automatic press-brake cell run by a single controller and a single program.
