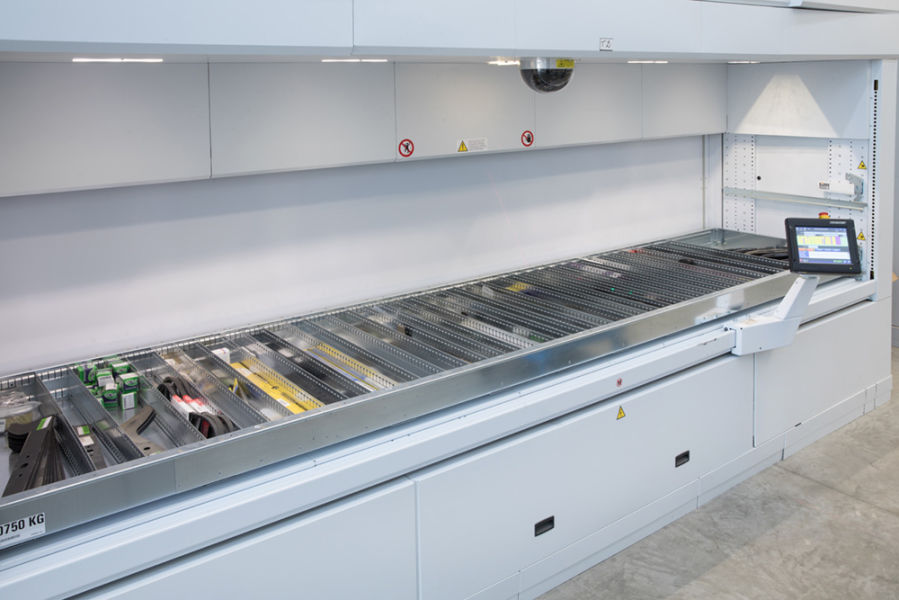

LIFT MC, MC-D & MC-DD
The best vertical lift module to recover space and increase security
Introduced on the market 30 years ago Modula Lift is amongst the most reliable and advanced on the market. Modula is the ideal solution to store any industrial product, components or spare parts in all possible industrial environments, industries and departments. Many companies have chosen Modula to re-organise and improve the workflow due to its flexibility, the wide range of models, the design and ease of use. The software can be used with Modula or as a stand-alone system that manages all possible warehouse operations or a combination of both. To gain the most benefit from your Modula and increase your productivity, we offer a wide range of accessories.
- Automatic tray weight measurement each time a tray is returned
- Dynamic storage of trays depending on the specific height
- Internal zinced coated steel structure
- Vertical axis lifting design driven by 2 steel reinforced toothed belts
- Extractor’s vertical lifting system with 8 HDPE rollers for each side of the elevator
| Unit heights: | from 3300 mm to 16100 mm |
| Unit height increments on: | 200 mm |
| Tray storage adjustability: | 25 mm |
| Tray widths: | from 1500 mm to 4100 mm |
| Tray depths: | 654 mm & 857 mm |
| Maximum product heights up to: | 695 mm |
| Net tray payload capacities: | 250 kg, 500 kg, 750 kg & 990 kg |
| Net unit load capacity: | 80.000 kg |
| Gross unit load capacity: | 90.000 kg |
| Throughput: | up to 120 Trays / hr (depending on the unit’s configuration) |
| Operator interface: | rugged 10,4” colour touchscreen control console |
| Number of bays: | up to 3, also higher than ground and on the same side |
| Type of bay: | internal or external with single or dual tray delivery |
| Minimal energy consumption: | consumption: 3kW vertical axis motor |
| Model | Tray Width (mm) | Tray Depth (mm) | Tray Wall Height (mm) | Maximum Tray Payload Capacity (kg) | Unit Footprint INTERNAL Bay (W x D) | Unit Footprint EXTERNAL Bay (W x D) |
|---|---|---|---|---|---|---|
| MC25 | 2500 | 654 | 45/70/120 | 250 | 2.917×2.556 | 2.917×3.246 |
| MC25D | 2500 | 857 | 45/70/120 | 250 | 2.917×3.165 | 2.917×4.058 |
| MC25DD | 2500 | 1257 | 45/70/120 | 250 | 2.917×4.366 | 2.917×5.659 |
| MC50 | 2500 | 654 | 70/120 | 500 | 2.917×2.556 | 2.917×3.246 |
| MC50D | 2500 | 857 | 70/120 | 500 | 2.917×3.165 | 2.917×4.058 |
| MC50DD | 2500 | 1257 | 70/120 | 500 | 2.917×4.366 | 2.917×5.659 |
| MC75 | 2500 | 654 | 70/120 | 750 | 2.917×2.556 | 2.917×3.246 |
| MC75D | 2500 | 857 | 70/120 | 750 | 2.917×3.165 | 2.917×4.058 |
| MC75DD | 2500 | 1257 | 70/120 | 750 | 2.917×4.366 | 2.917×3.246 |
| МС1000 | 2460 | 654 | 120 | 990 | 2.917×2.556 | 2.917×3.246 |
| MC1000D | 2460 | 857 | 120 | 990 | 2.917×3.165 | 2.917×4.058 |
| MC1000DD | 2460 | 1257 | 120 | 990 | 2.917×4.366 | 2.917×5.659 |
